New mapping techniques rapidly identified hurricane damage across all

Written by admin

Hurricane Ian left an extraordinarily broad path of destruction across much of South Florida. That was evident in reports from the ground, but it also shows up in satellite data. Using a new method, our team of spatial and environmental analysts was able to quickly provide a rare big picture view of damage across the entire state.

Satellite images and artificial intelligence reveal Hurricane Ian’s widespread damage. The dark areas have a high probability of damage. [Image: Su Yu/courtesy of the authors]

By using satellite images from before the storm and real-time images from four satellite sensors, together with artificial intelligence, we created a disaster monitoring system that can map damage in 30-meter resolution and continuously update the data.

It’s a snapshot of what faster, more targeted disaster monitoring can look like in the future—and something that could eventually be deployed nationwide.

How artificial intelligence spots the damage

Satellites are already used to identify high-risk areas for floods, wildfires, landslides, and other disasters, and to pinpoint the damage after these disasters. But most satellite-based disaster management approaches rely on visually assessing the latest images, one neighborhood at a time.

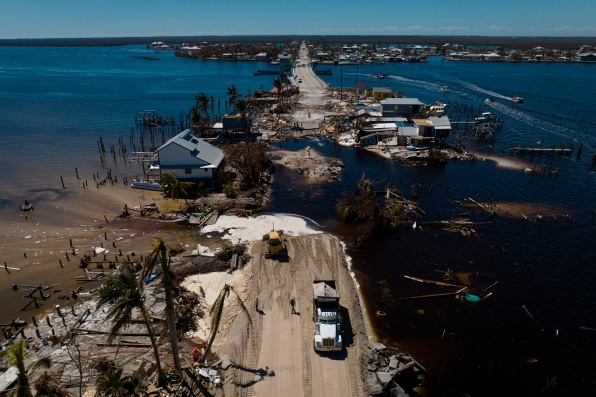

A dump truck works to repair a washed out road after Hurricane Ian hit Matlacha, Florida, on Oct. 3, 2022. [Photo: Ricardo Arduengo/AFP/Getty Images]

Our technique automatically compares pre-storm images with current satellite images to spot anomalies quickly over large areas. Those anomalies might be sand or water where that sand or water shouldn’t be, or heavily damaged roofs that don’t match their pre-storm appearance. Each area with a significant anomaly is flagged in yellow.

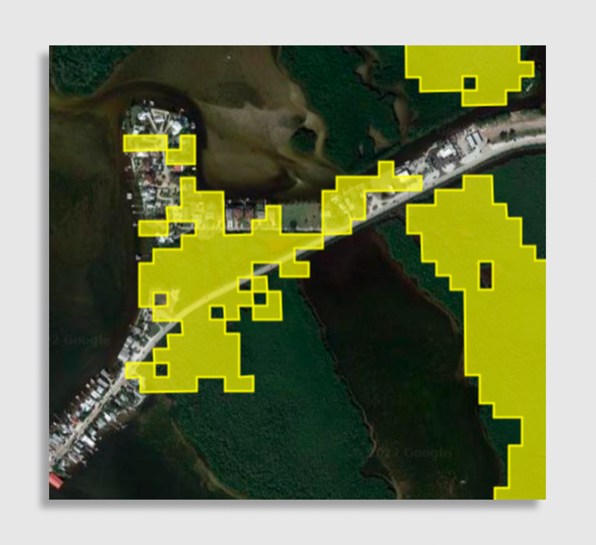

Damage detected in the same area of ​​Matlacha as in the photo. [Image: Su Yu/courtesy of the authors]

Five days after Ian lashed Florida, the map showed yellow alert polygons all over South Florida. We found that it could spot patches of damage with about 84% accuracy.

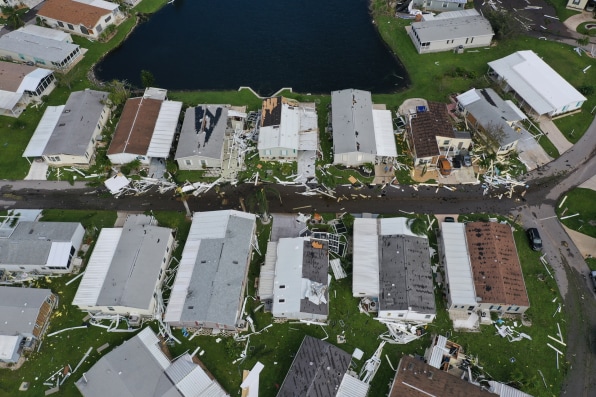

Punta Gorda, Florida, was hit by storm surge and high winds from Hurricane Ian. [Photo: Win McNamee/Getty Images]

A natural disaster like a hurricane or tornado often leaves behind large areas of spectral change at the surface, meaning changes in how light reflects off whatever is there, such as houses, ground or water. Our algorithm compares the reflectance in models based on pre-storm images with reflectance after the storm.

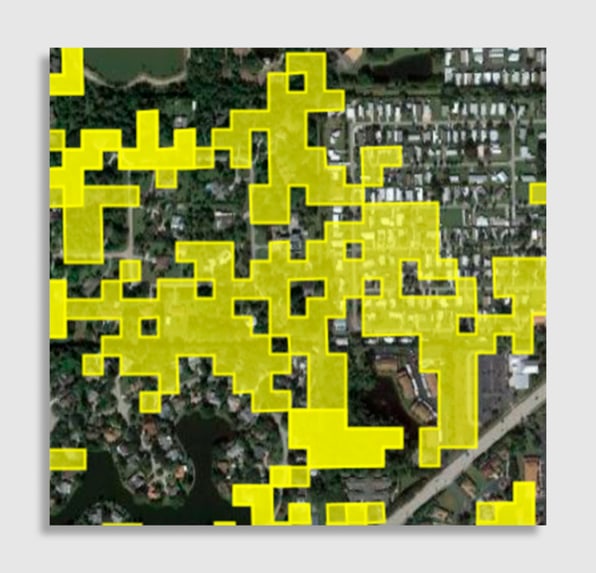

Damage in the same part of Punta Gorda shown in the photo. [Image: Su Yu/courtesy of the authors]

The system spots both changes in physical properties of natural areas, such as changes in wetness or brightness, and the overall intensity of the change. An increase in brightness often is related to exposed sand or bare land due to hurricane damage.

Using a machine-learning model, we can use those images to predict disturbance probabilities, which measures the influences of natural disaster on land surfaces. This approach allows us to automate disaster mapping and provide full coverage of an entire state as soon as the satellite data is released.

The system uses data from four satellites, Landsat 8 and Landsat 9, both operated by NASA and the US Geological Survey, and Sentinel 2A and Sentinel 2B, launched as part of the European Commission’s Copernicus program.

Real-time monitoring, nationwide

Extreme storms with destructive flooding have been documented with increasing frequency over large parts of the globe in recent years.

While disaster response teams can rely on airplane surveillance and drones to pinpoint damage in small areas, it’s much harder to see the big picture in a widespread disaster like hurricanes and other tropical cyclones, and time is of the essence. Our system provides a fast approach using free government-produced images to see the big picture. One current drawback is the timing of those images, which often aren’t released publicly until a few days after the disaster.

We are now working on developing near real-time monitoring of the whole conterminous United States to quickly provide the most up-to-date land information for the next natural disaster.
